Building stairs is one of those carpentry jobs where the math matters as much as the cuts. A staircase has to fit the opening, feel comfortable underfoot, and satisfy the safety rules that keep the work usable long after the finish is dry. In this guide I cover layout choices, measurement, stringer cutting, tread and riser installation, handrails, and the under-stair storage decisions that can make or break the finished result.
The details that matter before the first cut
- Start from the finished floor-to-finished floor rise; rough framing alone will throw the layout off.
- Keep every riser and tread uniform within a flight. That is what makes a stair feel right and pass inspection.
- For a common U.S. residential baseline, plan on 36 inches of clear width, a 7 3/4-inch maximum riser, and a 10-inch minimum tread.
- A landing at the top and bottom is part of the staircase, not an afterthought.
- Handrails and guards should be planned with the structure, not added as trim at the end.
- If the space below the stair will be used for storage, frame that idea in from the start.
Choose the stair layout that fits the room
The first decision is not the lumber. It is the shape of the stair and how people will move through the room. I have seen perfectly built stairs feel awkward simply because the layout fought the floor plan from day one.
| Layout | Best use | What it does well | Tradeoff |
|---|---|---|---|
| Straight run | Rooms with enough length to spare | Simplest stringer layout, easiest railing plan, cleanest walk line | Needs the most horizontal space and can feel long if the rise is tall |
| L-shaped with landing | Stairs that need to turn into a hall, entry, or adjacent room | Breaks the climb, adds a resting point, often feels safer | More framing and finish work than a straight run |
| U-shaped with landing | Basements, compact interiors, and tight vertical spaces | Compact footprint and predictable under-stair geometry | More precise headroom and landing planning |
| Winder | Space-constrained projects where a landing will not fit | Saves room without forcing a full turn platform | Less forgiving to walk and harder to lay out cleanly |
For daily-use stairs, I prefer a landing over a winder whenever the floor plan allows it. A landing gives the stair a natural pause, makes the turn easier on the body, and usually creates better space below for storage or access panels. Once the layout is chosen, the job becomes a measurement exercise, and that is where most mistakes start.

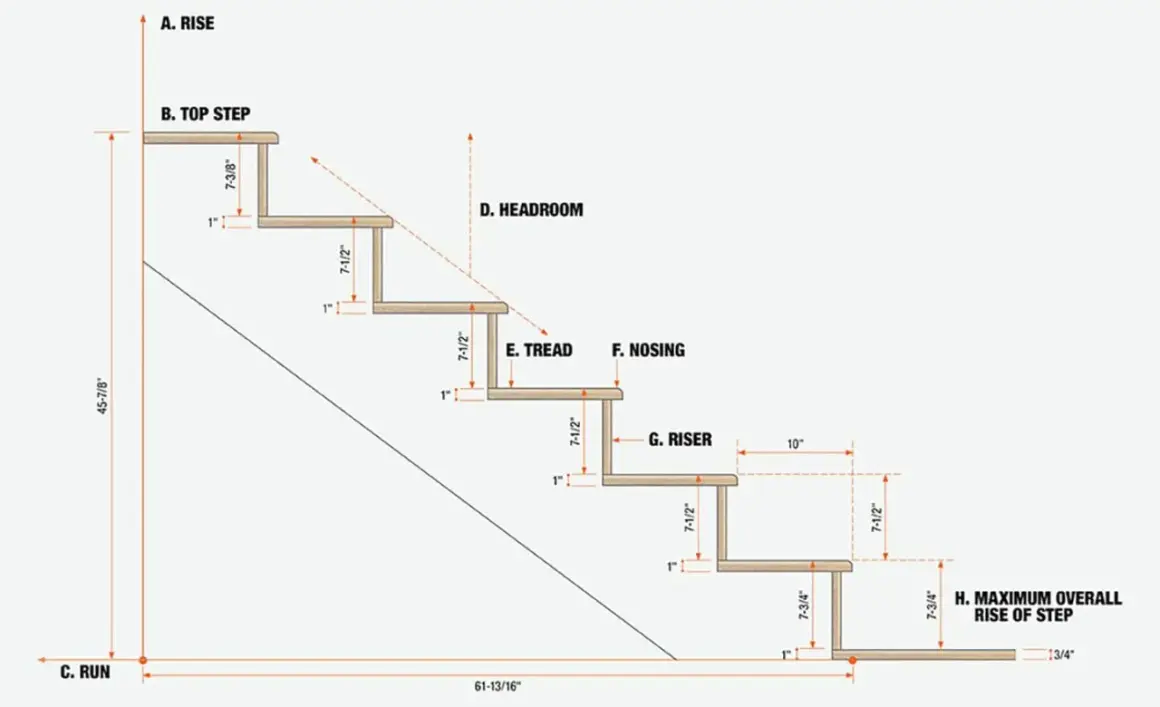

Measure the rise, run, and headroom before you cut
Good stair work starts with finished dimensions, not rough guesses. Measure floor-to-floor after you know the finish thickness above and below, because tile, hardwood, carpet, or underlayment can change the last step enough to matter. The nosing line, which is the line formed by the front edges of the treads, is the reference that tells you whether the stair will actually fit and feel right.
| Measurement | Common residential target | Why it matters |
|---|---|---|
| Clear width | 36 inches minimum | Gives the stair enough usable width for normal residential circulation |
| Riser height | 7 3/4 inches maximum | Too-tall risers make the stair tiring and often trigger code issues |
| Tread depth | 10 inches minimum | Shallow treads feel unstable and are harder to walk confidently |
| Headroom | 6 feet 8 inches minimum | Prevents the stair from becoming a head-banging trap under a soffit or landing |
| Handrail height | 34 to 38 inches above the nosing line | Keeps the rail comfortable and code-friendly |
| Riser and tread uniformity | Keep every step identical | A uniform flight feels smoother and is much less likely to cause a stumble |
My rule is simple: if the numbers do not work cleanly, I change the number of risers before I force the run. One awkward step is worse than slightly longer or shorter run length. On an active jobsite, OSHA also expects uniform risers and treads and limits variation to 1/4 inch within a flight, which is a useful standard to keep in mind even on a residential remodel.
From here, the layout can be transferred to the stringers, and that is where the staircase stops being a drawing and starts being wood.
Cut the stringers from a full-size layout, not from memory
A stringer is the sloped structural member that carries the treads and risers. I like to think of this part as full-size drafting with lumber. A framing square and stair gauges are still the cleanest way to transfer rise and run, and a story pole helps keep the top and bottom adjustments honest when finish flooring or a landing changes the math.
- Mark the finished floor-to-finished floor rise on a story pole and confirm the total rise one more time.
- Divide that rise into an exact number of risers, then recalculate the actual rise so every step matches.
- Set the framing square with stair gauges to the chosen rise and run. Stair gauges are the small stops that lock the square to the dimensions you want to repeat.
- Lay out one test stringer first, then check the top cut, bottom cut, and fit at both landings before you duplicate it.
- Use the test piece as the master pattern only after the first fit looks right in the opening.
- Add blocking or extra support where the stair is wide, heavily used, or finished with a material that needs a stiffer base.
The most expensive stair mistake is usually not a bad board. It is a bad layout copied three times. I would rather waste one test stringer than discover after trim that every step is off by the same amount. If the opening is awkward or the stair is unusually wide, I stop treating stringer size as a guess and start treating it as a structural question.
Once the support lines are right, the next job is making the walking surface feel solid instead of merely presentable.
Build the tread and riser assembly so the stair stays quiet
A stair can look finished and still feel cheap if the layers move against each other. Squeaks usually come from motion, not from bad aesthetics, so I fasten for stability first and appearance second. That means good bearing on the stringers, consistent fastening, and enough glue or adhesive at the right contact points to stop seasonal movement from turning into noise.
| Finish choice | Best when | Watch out for |
|---|---|---|
| Paint-grade pine | You need a practical, budget-friendly interior stair | Dents and wear show up faster than on harder woods |
| Hardwood treads | The stair will see daily traffic and you want a durable look | Cost goes up, and layout errors are harder to hide |
| Carpet or runner | You want a softer feel and quieter footfall | Thickness changes the final step math, so plan it early |
| Open risers | You want a lighter visual look and the code allows it | Gaps, cleaning, and code limits need extra attention |
I like to pre-drill hardwood where splitting is likely, especially near nosings and thin edges. I also seal or finish exposed end grain as early as possible, because that is where wear and moisture start to show first. If the stair will get carpet later, I want that thickness factored in before the final cuts, not after the finish crew has already changed the geometry.
- Use adhesive at bearing points, but do not rely on glue alone.
- Keep riser faces tight so the stair does not collect light gaps and dust lines.
- Fasten each tread consistently so the load transfers into the stringers.
- Choose solid backing where the finish layer spans a weak edge.
- Verify open-riser gaps carefully if you are building a modern open look.
When the walking surface is firm and quiet, the remaining work is mostly safety hardware and code-sensitive details that inspectors and homeowners notice immediately.
Add handrails, guards, and the code checks people skip
Handrails are not decorative trim. They are part of the stair system, and the stair is not really done until the rail feels natural in the hand and the open side is protected. In a typical residential stair, I plan on at least one handrail for any flight with four or more risers, and I position it so a person can follow the rail without reaching or twisting.
- Set the handrail between 34 and 38 inches above the line connecting the nosings.
- Leave about 1 1/2 inches of clearance from the wall so the hand can actually wrap the rail.
- Choose a graspable profile; a round rail around 1 1/4 to 2 inches in diameter usually feels good in the hand.
- Protect open sides with a guard, and keep the openings small enough that a 4-inch sphere cannot pass through.
- Make sure doors and gates do not steal usable landing space when they swing open toward the stair.
On a construction site, OSHA also expects stairrails and handrails to resist a 200-pound load, and temporary stair parts need to be free of protruding nails and slippery surfaces before people walk on them. That may sound like jobsite language rather than finish-carpentry language, but the point is the same: a rail that flexes or a tread that skates is a problem, not a style choice.
Once the stair is safe and comfortable, the space below it becomes the last major design decision, and that is where carpentry starts overlapping with storage.
Design under-stair storage before you close the underside
If the space below the stair will become drawers, a closet, or a utility niche, I frame for that use before the underside is hidden. Retrofitting access later is almost always a compromise, and it usually means cutting into finishes that should have stayed intact. Storage works best when it is treated as a separate cabinet problem, not as part of the stair’s load path.
- Keep the structural members accessible enough for inspection and future repair.
- Attach storage walls, drawer boxes, or doors to non-structural framing, not to the stringers themselves.
- Leave room for ventilation if the cavity will hold shoes, cleaning products, or seasonal items.
- Plan lighting and access width early so the storage feels intentional instead of like leftover space.
- Prefer straight or landing-based stairs when you want clean storage geometry below the stair.
My practical preference is simple: if the under-stair area matters, I design the stair and the storage together. A straight run or a U-shaped stair usually gives you better cabinet proportions than a tight winder, and a landing can create a surprisingly useful pocket for drawers or a closet front. The mistake to avoid is boxing in structure so tightly that nobody can service it later.
The last checks that keep a staircase quiet, safe, and code-friendly
Before I call the job done, I walk the stair slowly and listen for movement. If the rise feels even, the rail lands naturally in the hand, and nothing rattles underfoot, the build is probably right. The last hour on a stair often saves the longest week of repairs.
- Check every riser and tread with a tape and a straightedge.
- Look for proud fasteners, sharp corners, or splinters at the nosings.
- Confirm the top and bottom landings feel level and clear of door conflicts.
- Test the rail from the bottom and from the top, not just once in the middle.
- Verify that finish flooring, paint buildup, or carpet details did not alter the final geometry.
The smallest errors are the ones users feel first, so I would rather spend one extra hour on layout and fastening than spend a weekend fixing a staircase that looks fine but walks badly.
