A bathroom vanity installation looks simple until the cabinet has to line up with studs, plumbing, and the rest of a room that never seems square. I treat it as a carpentry job with a plumbing finish: if the measurements are right, the rest goes smoothly; if they are off, every later step gets harder. This guide walks through sizing, removal, fastening, plumbing, common mistakes, and the point where hiring help makes more sense.
The decisions that make the install go smoothly
- Measure the wall, stud locations, and plumbing before you buy the cabinet.
- Most standard vanity widths in the US are 24, 30, 36, 48, 60, and 72 inches.
- A straight replacement is often a one-day DIY job, but moving plumbing changes the equation.
- Fasten the vanity to studs or proper blocking; caulk alone is not support.
- Test every water and drain connection before sealing the backsplash and cleaning up.
- Storage layout matters as much as size, especially around the sink trap.

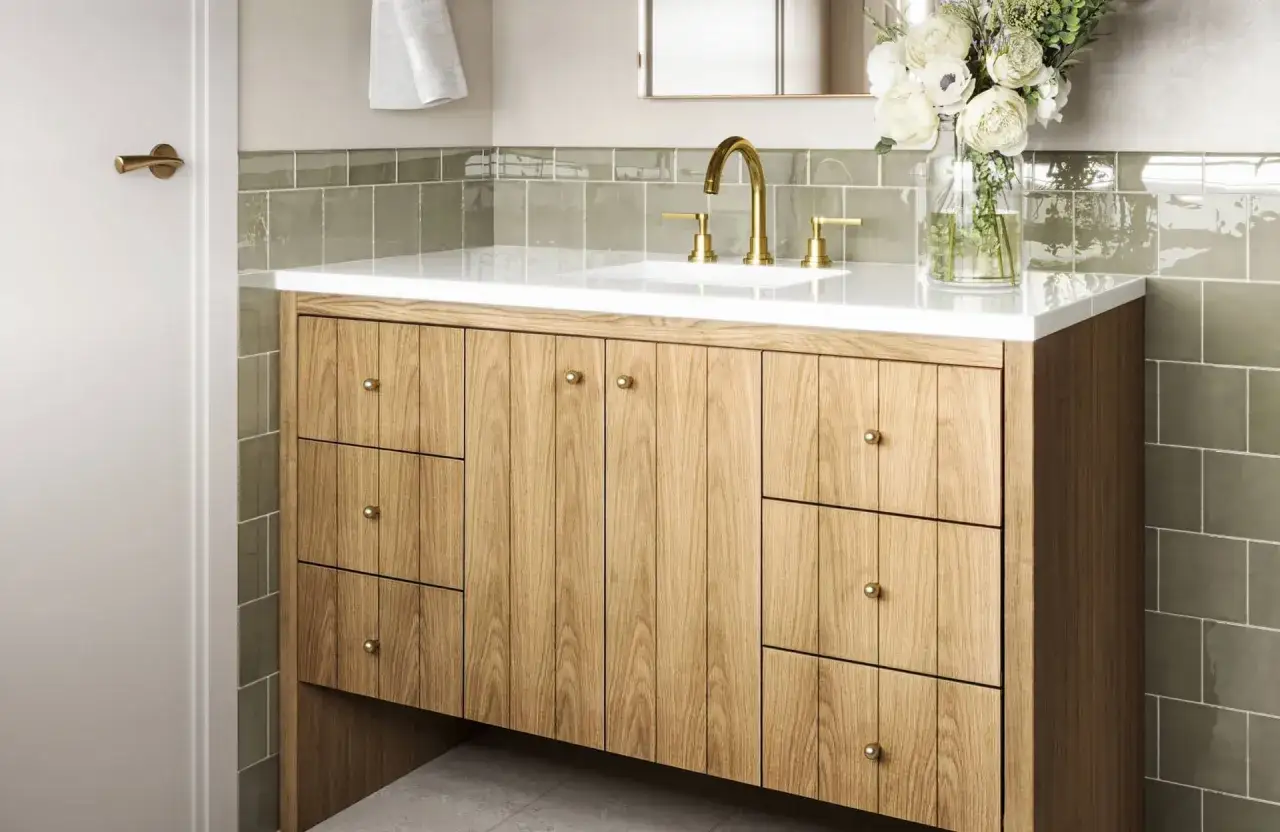

How I measure the room before buying the vanity
I start with the wall, not the product photo. The old cabinet may have hidden gaps, a trimmed backsplash, or plumbing that was quietly forced to fit, so I measure the available width, depth, and height again from scratch. That matters because most standard vanities in the US fall into familiar sizes: 24, 30, 36, 48, 60, and 72 inches wide, with depths often around 17 to 24 inches and heights around 31 to 35.5 inches.
If I am buying a vanity top separately, I check that the top is slightly larger than the cabinet, with about 1 inch of extra width and depth usually making the fit easier. I also look at how the storage is actually arranged. A 36-inch cabinet can be more useful than a wider one if it gives me deeper drawers, while a large sink base can waste space if the trap layout is awkward. In a small bath, I care just as much about door swing and walking space as I do about the size of the cabinet itself.
| Vanity width | Best fit | Storage reality | What I watch for |
|---|---|---|---|
| 24-30 in. | Powder room or narrow bath | Usually one sink with limited internal volume | Preserve traffic space and plan for compact organizers |
| 36-48 in. | Guest or family bath | Good balance of drawer storage and counter space | Works well for a single sink with useful side storage |
| 54-60 in. | Primary bath | Often supports dual sinks or a wide single sink | Check plumbing centerlines before you commit |
| 72 in.+ | Large primary bath | Maximum counter and storage, but heavier and less forgiving | Confirm floor condition, wall backing, and door swings |
For style, I separate what looks good from what installs cleanly. Freestanding cabinets are usually easier to retrofit, while floating units need solid backing in the wall and a little more precision. Once the cabinet size is locked in, the next job is stripping out the old one without tearing up the wall around it.
How I remove the old unit without creating extra repair work
This is the part people rush, and it is where a simple swap turns into patching and repainting. I shut off the hot and cold water valves, open the faucet to relieve pressure, and put a bucket under the P-trap because there is always more water in there than you expect. Then I disconnect the supply lines, loosen the drain trap, and cut the caulk where the backsplash meets the wall.
- Turn off the shutoff valves and open the faucet.
- Place a towel or bucket under the P-trap.
- Disconnect the water lines and drain trap.
- Score the caulk or sealant at the backsplash.
- Remove the screws holding the vanity to the wall.
- Lift the cabinet out and inspect the wall and floor behind it.
Once the vanity is out, I check for swelling, mold, loose drywall, or a floor that is soft where the cabinet sat. If the damage is more than cosmetic, I stop and repair it before the new unit goes in. That pause is worth it, because a vanity installed over water damage usually becomes a repeat problem instead of a finished project.
How I set, level, and fasten the cabinet
This is the carpentry part that decides whether the vanity feels solid or annoying. I dry-fit the cabinet in place, check the level from side to side and front to back, and use shims where the floor is low or the wall is slightly out of square. A vanity should not be made level with caulk; it should be made level with shims and then fastened so it stays that way.
I look for studs with a stud finder and mark them before drilling pilot holes. If the vanity has a solid back, I transfer the pipe locations to the back panel and cut the openings before final placement. For floating cabinets, I want blocking in the wall and I want it sized for the load, because the cabinet, countertop, and everything stored inside add up quickly. Wall anchors can help in some situations, but I do not treat them as a substitute for real structural support when the unit is heavy or the manufacturer expects stud attachment.
When the cabinet is sitting correctly, I drive the screws snug, not brutally tight. Overdriving fasteners can twist the frame and throw the top out of plane. Once the cabinet is locked in, the plumbing and top can be handled without chasing alignment problems later.
How I finish the top, sink, faucet, and drain
I dry-fit everything before I commit to sealant. If the top is separate, I make sure it sits flush and overhangs evenly, then I attach it with the material the manufacturer recommends, usually a thin bead rather than a thick mound. Around the backsplash, I prefer a clean line of silicone or the approved sealant for the top material, because that joint sees splashes and movement.
The sink and faucet are easier to install before the countertop is permanently sealed down, especially if the underside is cramped. I follow the faucet instructions, use plumber’s putty only where the fixture calls for it, and connect the drain and P-trap carefully so the trap sits naturally instead of being forced into place. After the water lines are back on, I run the faucet for several minutes and wipe every joint with a dry paper towel. That makes even a tiny drip obvious.
I do not fully button up the room until I know the system holds water. A lot of poor vanity installs look fine for a day and then fail at the first leak test, so this stage is where patience pays off.
The mistakes that turn a simple install into a redo
Most vanity problems are not dramatic. They are small measurement errors, weak fastening, or plumbing that was never checked against the cabinet layout. The good news is that those mistakes are predictable, which means they are easy to avoid once you know what to look for.
| Mistake | Why it hurts | Better move |
|---|---|---|
| Measuring the old cabinet instead of the wall and studs | The replacement fits the space on paper but not on the wall | Measure the finished opening and mark stud locations first |
| Choosing a cabinet that is too deep | Doors, knees, and traffic space get crowded fast | Check depth against the room, not just the sink style |
| Ignoring drain and supply line positions | Plumbing ends up forced, offset, or visibly awkward | Match the cabinet opening or choose a different sink layout |
| Relying on caulk instead of fastening | The vanity can shift, rack, or tip over time | Shim, level, and screw the cabinet into solid backing |
| Sealing before leak testing | Hidden drips can soak the floor or the base of the cabinet | Test the plumbing first, then finish the caulk lines |
One more thing I see often: people forget how storage works around the sink trap. If you want the vanity to store more than a roll of toilet paper and a bottle of cleaner, choose drawers or pull-outs on the sides and leave the trap zone for shallow items. That is how a cabinet stops feeling like a box and starts acting like real storage.
When I would DIY the job and when I would not
Recent Angi data puts a typical project around $1,500 including the vanity, with simple prefab swaps closer to $300 and custom work reaching about $4,000. Lowe's still treats the task as an intermediate, one-day project, and that lines up with what I see when the plumbing stays put and the wall is in good condition. The moment the drain moves, the subfloor is soft, or the wall needs backing for a floating unit, the job gets more expensive because the risk is no longer just cosmetic.
| Situation | My call | Why |
|---|---|---|
| Same-size replacement with no plumbing move | DIY is reasonable | The cabinet swap is manageable if you are comfortable with basic tools |
| New top but same rough-in | DIY if you are careful | Cutouts and sealing take patience, not advanced framing work |
| Moving supply or drain lines | Hire a plumber | Layout mistakes and code issues become much more likely |
| Floating vanity on a weak wall | Reinforce first or hire it out | Backing must carry the load without flex |
| Rot, mold, or a damaged floor | Hire a pro | The vanity is only the visible part of a larger repair |
If I am honest, the best DIY projects are the ones that stay boring. As soon as the job turns into plumbing relocation, structural repair, or custom carpentry around bad framing, the value of a professional goes up fast.
The small details that make the vanity feel built in
The last 10 percent is what makes the installation look intentional. I use filler strips when the wall is not perfectly straight, keep drawer and door reveals even, and match the faucet finish to the hardware so the whole wall reads as one piece. If the cabinet sits on a slightly uneven floor, I finish the base neatly so the shims disappear instead of becoming the first thing anyone notices.
Storage details matter here too. A deep top drawer for daily items, a U-shaped lower drawer around the trap, and a narrow side stack for cosmetics or shaving gear usually work better than a giant open cavity under the sink. That is why I think of a vanity as cabinetmaking first and plumbing second: the plumbing has to fit, but the storage has to work every day.
When everything is aligned, sealed, and tested, the vanity disappears into the room in the best possible way. It feels like it belongs there, and that is usually the clearest sign the install was done right.
