Roof Framing Guide - Rafters, Trusses, & Lasting Durability

Strong roof framing is what keeps a house dry, square, and stable long after the shingles look finished. In this guide I break down the structure’s job, compare rafters and trusses, show how a roof is laid out, and point out the code and eave details that most often decide whether a roof performs well or starts causing callbacks.

What the roof frame actually carries

When I inspect a roof, I do not start with shingles. I start with the forces trying to move the structure: the dead load of the materials, snow where it applies, and wind uplift that wants to pull the assembly apart. A roof is not just a top cover; it is a structural system that has to transfer those loads down through the walls and into the foundation.

The simplest way to think about it is this: the load should move in one continuous path. Roof sheathing transfers force to rafters or trusses, those members transfer it to the top plates, and the walls carry it to the foundation. APA’s wind-load guidance keeps coming back to that idea for a reason. If one connection is weak, the whole system becomes easier to damage even when the lumber itself is sized correctly.

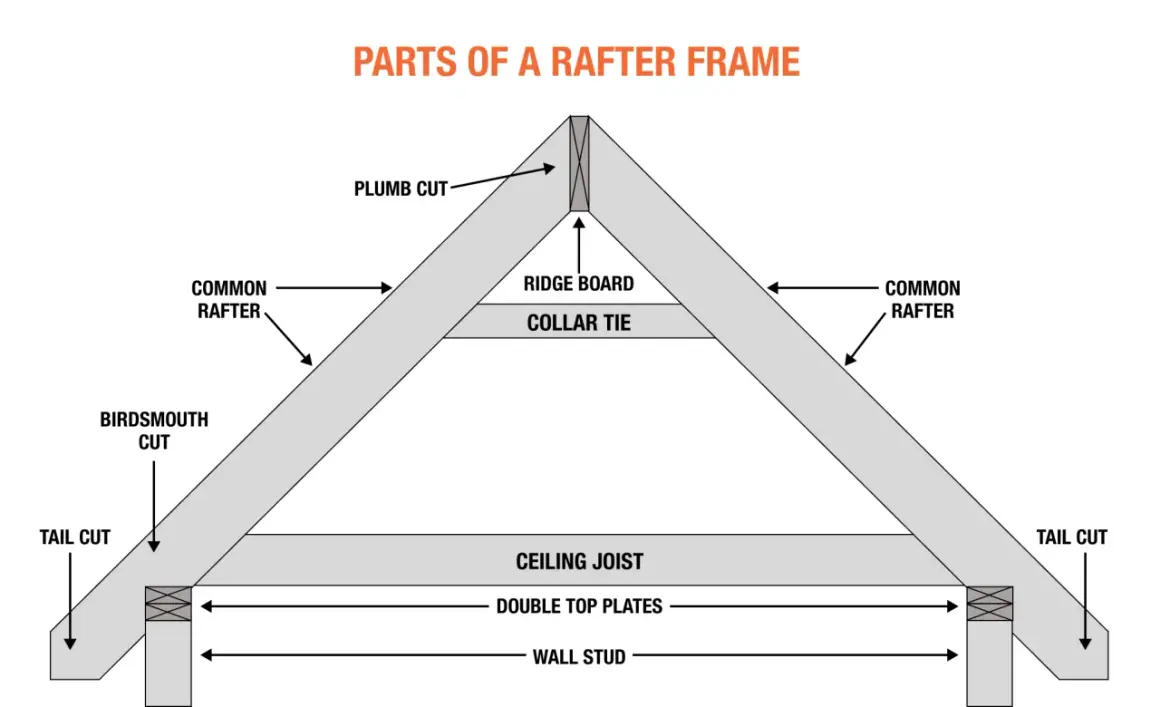

Ridge board and ridge beam are not the same thing

A ridge board mainly gives rafters a place to meet and stay aligned. A ridge beam, by contrast, is a structural member that carries load and changes the way the roof has to be supported below. That distinction matters on additions and vaulted ceilings, where people often assume the same layout works in both cases.

Read Also: Attic Ventilation Guide - Stop Moisture & Heat Buildup

Why the edges matter as much as the middle

Wind pressure is rarely gentle at the perimeter. Eaves, ridges, and gable ends see more stress than the center of the field, so details there deserve more attention than they usually get. A roof that looks fine in the middle can still fail at the edges if the connections, sheathing, or bracing are weak.

Rafters, trusses, and engineered members

For most projects, the real choice is not “wood or not wood.” It is whether the roof should be framed on site with rafters, assembled from prefabricated trusses, or supported with engineered members where spans and loads demand it. I look at that choice through three questions: how complex is the shape, how much speed matters, and how much design flexibility the project needs later.

Hybrid roofs are common, and that is often the smartest answer. Trusses may handle the main field while stick framing resolves hips, valleys, dormers, or porch tie-ins. I usually prefer that approach when the main roof is repetitive but the edges are not, because it balances speed with the freedom to solve the tricky parts properly.

How I lay out a roof before anything gets fastened

Good layout is where most future problems disappear. Before the first member is set, I want the span, pitch, bearing lines, overhangs, and ridge location confirmed. A small error at the wall plate shows up later as a crooked ridge, uneven eaves, or a deck that fights you all the way through roofing.

1. Verify the bearing walls, wall heights, and actual span.
2. Check square and level at the plate lines instead of assuming the existing structure is true.
3. Mark the ridge or truss layout, then confirm overhangs and birdsmouth cuts before the first cut.
4. Set the primary members first, then frame hips, valleys, dormers, and openings off the true line.
5. Brace as you go; a temporary brace is cheaper than a rework after the deck starts to rack.

I still like a simple 3-4-5 squareness check on smaller roofs because it catches an error before it multiplies. On a remodel, I trust that check less than a full measurement of the existing structure, because old framing often wanders more than the drawing suggests. Once the main lines are right, the rest of the job becomes a carpentry problem instead of a geometry problem.

Code, spacing, and ventilation details that prevent rework

Ventilation is not a roofing accessory in my book; it is part of moisture control for the whole attic. If soffit intake is blocked by insulation or the overhang details are sloppy, the roof can trap heat and moisture even when the shingles and flashing look perfect on day one.

Common mistakes that show up after the roof is finished

• Misaligned rafters or trusses. The deck telegraphs every hump, and shingles rarely hide it for long.
• Guessing at member sizes. Span tables or engineering matter because lumber size alone does not tell the whole story.
• Cutting engineered members in the field. Prefab systems are designed as a package, not a pile of interchangeable sticks.
• Ignoring blocking and bracing. Roofs need stiffness, especially at transitions and in wind.
• Skipping ventilation or leaving soffit paths blocked. Moisture problems often start in the attic, not on the shingles.

I also see eave rot blamed on “bad gutters” when the real issue is a weak overhang, poor flashing, or a fascia board that never had proper support. Once the frame is compromised, the gutter is just the messenger.

Where gutters, fascia, and eaves meet the structure

Gutters do not carry roof loads, but they reveal weak eaves fast. If the fascia is out of line, the rafter tails are soft, or the drip edge is missing, water tends to stay where it should not. The first symptom is often staining or sagging at the roof edge, not a dramatic leak inside the house.

• Check the fascia first. Gutter hangers should fasten into sound wood, not into swollen paint or deteriorated trim.
• Keep the soffit vent path open. A good overhang should breathe; packed insulation or sloppy trim work can choke intake airflow.
• Use drip edge correctly. It helps water leave the deck cleanly and protects the eave line from capillary action.
• Watch ice and snow loads. In cold regions, a gutter full of ice is not just a drainage issue; it stresses the edge assembly.

If I were retrofitting gutters on an older house, I would inspect the rafter tails and fascia before I picked a hanger style. That order saves money, because a new gutter cannot compensate for rotten wood.

When I stop treating it like a carpentry problem

Some roofs are fine to frame with standard layout skill. Others need an engineer or an experienced structural framer because the risk is not cosmetic; it is structural. I make that call when the design stops being repetitive and starts depending on long spans, unusual loads, or a roof geometry that is doing more than one job.

• Long spans or open plans where standard lumber becomes marginal.
• Heavy coverings such as tile or slate that change the load story.
• Dormers, valleys, hips, or skylights that interrupt the simple load path.
• Storm damage, sagging ridges, or visible twist in existing members.
• Any remodel where a load-bearing wall is being altered or removed.
• High snow or wind exposure, especially where local rules are stricter than the average suburban build.

The cost of a real structural answer is usually small compared with fixing a roof that was framed to look right but not to carry right.

The checks I would never skip before covering the deck

Before the sheathing goes down, I want three things confirmed: the roof is straight, the load path is continuous, and the eaves are ready for water management. If those are in place, the rest of the assembly has a much better chance of staying quiet, dry, and predictable.

• Verify level bearing and a straight ridge line.
• Check fastener spacing and panel gaps before the deck is hidden.
• Confirm that soffit vents, baffles, and attic insulation are not fighting each other.
• Inspect fascia, drip edge, and rafter tails before the gutters go on.

That is the difference between a roof that just gets finished and one that performs for years without drawing attention to itself.
