The real job of soffit attic ventilation is to move outdoor air through the eaves without letting insulation choke the path. When that intake is clear and matched to a high exhaust opening, the attic stays drier, the roof deck runs cooler, and insulation performs the way it should. When the eaves are blocked, the same attic can trap heat, collect moisture, and start showing damage in places homeowners usually blame on shingles.

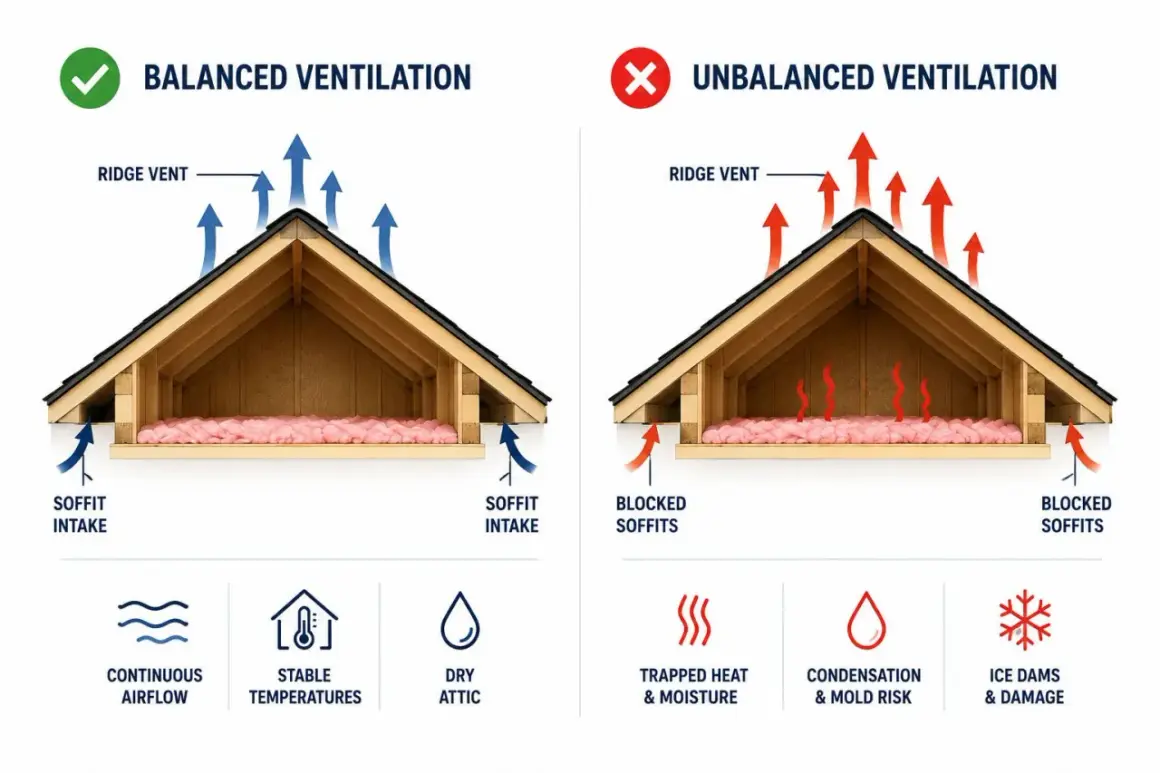

The attic works only when the eaves and ridge move air together
- The soffit is the intake path; ridge or upper roof vents are the exhaust.
- A proper setup depends on clear air channels, not just more vent holes.
- Most vented attics need baffles at the eaves so insulation does not choke off airflow.
- In many U.S. code frameworks, the baseline is 1/150 net free vent area, with a 1/300 exception in specific conditions.
- Ice dams, wet insulation, and overheated rooms are common signs that the system is out of balance.
- Gutters do not vent the attic, but overflow and fascia rot can damage the soffit edge and vent openings.
What the soffit intake is supposed to do
In a vented attic, the soffit openings are the low point of a simple air path. Cooler outdoor air enters near the eaves, warmer air rises and exits higher on the roof, and that movement helps flush heat and moisture out of the space. I like this setup because it is passive, predictable, and easy to inspect when the roof is built correctly.
The detail that gets missed is that intake alone is not enough. If there is no clear exit at the ridge or another upper exhaust point, or if the soffits are smaller than the exhaust side, air can stall. That is why I treat the soffit as one piece of the system, not the whole solution.
How the air path should be laid out
The rule I use is simple: air should enter low, move across the underside of the roof deck, and leave high. ENERGY STAR is blunt about the most common mistake here: do not cover soffit vents with insulation. That is exactly why rafter vents, also called baffles, matter so much.
A rafter vent creates a narrow channel that keeps insulation away from the roof sheathing. In typical retrofits, those baffles come in 4-foot lengths and widths that fit 14-1/2-inch or 22-1/2-inch rafter spacing. The goal is not to make a wide tunnel; it is to preserve a continuous 1-inch air space so the intake at the eaves is not pinched off.
For code and performance reasons, I also look for vent openings that are screened and sized correctly. In many U.S. code provisions, the least dimension of the opening is limited to 1/16 inch minimum and 1/4 inch maximum, and upper vents are typically kept within 3 feet of the ridge or highest point so the exhaust path actually works. The numbers vary a bit by jurisdiction, but the principle does not.
- Keep the vent path continuous from soffit to high exhaust.
- Keep insulation out of the eave bay.
- Leave the soffit opening unobstructed, including behind painted or screened trim.
- Keep can lights and other heat sources clear unless they are rated for contact.
When that geometry is right, the attic can behave the way a vented roof is supposed to behave. From there, the real question becomes whether the system is actually working in the field.
The warning signs I look for first
Poor attic ventilation usually leaves clues before it causes a major failure. In cold weather, the classic sign is ice damming at the gutters: heat escaping into the attic melts snow on the roof, then the meltwater refreezes at the colder edge. In warm weather, I look for a roof deck that feels excessively hot, insulation that smells musty, or attic framing with rust, staining, or mildew.
Other red flags are more subtle but just as useful.
- Insulation tucked tight against the eaves or visibly covering soffit vents.
- Dirty or matted insulation near the perimeter, which often signals air leakage or moisture movement.
- Paint peeling on the top floor ceiling line or upper walls.
- Condensation on nails, sheathing, or HVAC ducts in the attic.
- Attic temperatures that stay far above outdoor air even after sunset.
One detail I do not ignore is the condition of the gutters and fascia. Overflowing gutters can soak the soffit edge, rot the surrounding wood, and hide vent blockages behind damaged trim. That is not the same as poor attic ventilation, but in the real world the two problems often show up together.

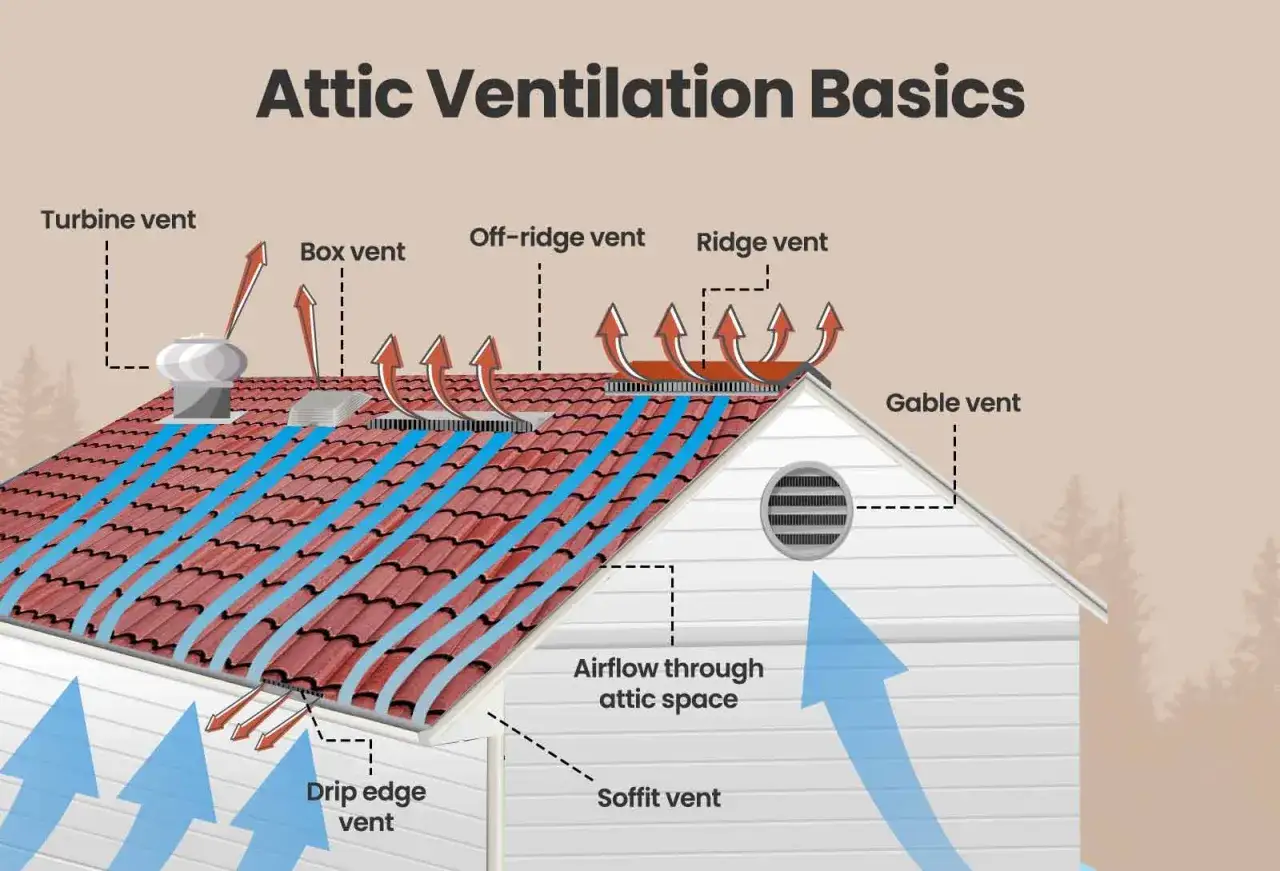

How it compares with other attic vent setups
Not every roof uses the same intake and exhaust strategy. Some homes rely on soffit and ridge vents, some mix soffit and gable vents, and some older houses still depend on roof louvers or powered fans. I usually compare them by how well they move air without creating short-circuits or making the attic pressure-sensitive.
| Setup | Best use | Main advantage | Main limitation |
|---|---|---|---|
| Soffit intake + ridge exhaust | Most vented attics and reroofs | Balanced airflow from low to high | Requires clear baffles and a continuous exhaust path |
| Soffit intake + gable vents | Some older homes and simple retrofit cases | Easy to understand and sometimes easier to add | Can short-circuit airflow instead of sweeping the attic |
| Roof louvers or box vents | Roofs without a ridge vent option | Can add exhaust where needed | Performance depends on placement and total vent area |
| Powered attic fan | Special cases with good air sealing | Moves a lot of air quickly | Can pull conditioned air from the house if the attic leaks |
| Unvented attic | Conditioned roof assemblies and some spray-foam designs | Removes the need for passive venting | Requires a different design strategy, not a partial retrofit |
ENERGY STAR is right to warn homeowners about attic fans when soffit vents are blocked: if the house is not well sealed, the fan can pull cooled indoor air into the attic instead of just moving outside air. That is why I prefer passive systems first, then mechanical help only when the whole assembly has been thought through.
What I check before I blame the roof
When a homeowner says the attic is hot or the roof leaks at the edge, I start with a short inspection sequence instead of guessing. Most of the time the problem is a blocked intake, missing baffle, or air leak from below rather than a mysterious roofing defect.
- Look at the soffit openings from inside the attic and from outside the eaves.
- Check whether insulation has drifted over the intake path.
- Verify that each rafter bay has a clear channel to the roof deck.
- Inspect bath fans, dryer vents, and recessed lights for leaks into the attic.
- Check fascia, drip edge, and gutter overflow for water damage near the soffits.
- Confirm that the exhaust side is high enough and not interrupted by dead zones in the roof shape.
There is one code detail I keep in mind during this step: in many U.S. jurisdictions, enclosed attics use a minimum net free vent area of 1/150 of the vented space, with a 1/300 exception in certain balanced or moisture-controlled assemblies. The practical point is that vent openings must be sized as a system, not guessed at one panel at a time.
Where soffit venting is not continuous, the baffle line should stay continuous too, so intake air does not bypass the eave and die in a dead cavity. That is a small detail on paper and a big one in the attic.
When repair is enough and when the design needs to change
Some attics need a cleanup and a small repair. Others need a different roof strategy. The line between those two is usually air sealing, moisture load, and roof geometry.
If the attic floor has obvious air leaks, I fix those before I add more insulation or add more vents. If the soffit bays are blocked, I clear them and install baffles. If the roof has no reliable high exhaust, I add one instead of stacking random vents in different places. Those steps solve a lot of problems because they restore the intended airflow path rather than fighting it.
There are also cases where venting is not the right retrofit. A cathedralized roof, a spray-foamed roof deck, or an attic that is being converted into conditioned space may need an unvented assembly. That is a design decision, not a quick patch, and I would not mix a partial vent retrofit with a roof system that was meant to be sealed.
The biggest mistake I see is trying to use ventilation to compensate for a leaky ceiling plane. Air sealing and ventilation are related, but they are not interchangeable. If the warm, moist air from the house is still entering the attic, better soffit intake will not fully solve the problem.
The repair order that usually gives the best result
If I were bringing a vented attic back into balance, I would usually work in this order: air seal the ceiling plane, clear the soffits, install or repair baffles, make sure the high exhaust is continuous, and only then upgrade insulation to the target depth. That sequence matters because insulation installed too early can bury the intake path and create the very problem you were trying to solve.
- Seal ceiling penetrations around plumbing, wiring, light fixtures, and attic hatches.
- Install baffles at every eave bay that needs one.
- Keep insulation at least 3 inches away from non-IC recessed lights.
- Make sure ventilation openings are screened and sized for the roof area.
- Recheck the soffit and fascia after gutter cleaning or roof work.
The houses that perform best are rarely the ones with the most vents. They are the ones with a clean intake path, a clear exhaust path, and a roof edge that stays dry. If you keep those three things in order, the attic becomes much easier to live with, and the roof usually lasts longer because the assembly is not fighting trapped heat and moisture.
