Measuring tile starts with more than a tape measure. The real job is figuring out the true surface area, the cuts the layout will force, and the extra material needed so the install does not stall halfway through. The practical answer to how to measure for tile is to break the project into clean shapes, total the square footage, and then add a realistic waste allowance before you buy anything.
The numbers that keep a tile order on track
- Measure every tiled surface separately and sketch the room before doing the math.
- Use length x width for simple rectangles, then divide irregular spaces into smaller shapes.
- Add about 10% waste for straight layouts and 15% or more for diagonal, herringbone, or cut-heavy rooms.
- Do not subtract small openings like outlets; only subtract large openings when they truly remove tile coverage.
- Round up to full boxes and confirm box coverage, trim, grout, and thinset before buying.
Start with a sketch that matches the room
I always begin with a rough drawing, not the arithmetic. A floor plan on paper lets me mark walls, doorways, closets, niches, and any odd jogs before I ever count square feet. That matters because a room that looks simple at first glance often hides a small bump-out or alcove that changes the order more than people expect.
For square or rectangular spaces, measure the longest usable length and width, then write both numbers on the sketch. If walls are not perfectly parallel, take measurements at more than one point and use the largest consistent dimension for planning. For L-shaped rooms, split the space into two rectangles and measure each one on its own. That is slower than guessing, but it is also how you avoid a short order that forces a second delivery.
If the project includes more than one surface, I treat each surface as a separate part of the takeoff. A bathroom floor, a tub surround, and a backsplash are not one measurement problem. They are three. Once the shape is clear, the next step is turning those measurements into usable square footage.
Convert dimensions into square footage

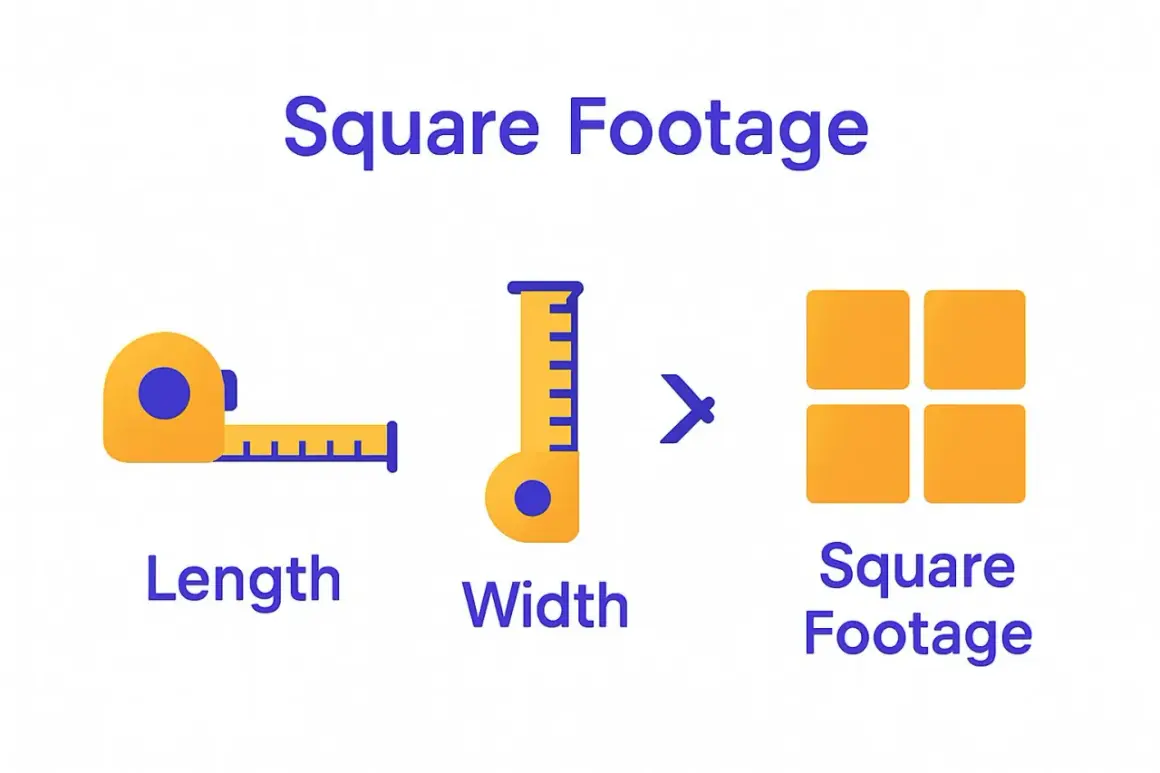

For a basic floor or wall, the formula is still simple: length x width = square footage. A room that is 10 feet 4 inches by 8 feet 6 inches is 10.33 feet by 8.5 feet, which comes to about 87.8 square feet before waste. That number is your starting point, not your final order quantity.
For walls, measure each wall separately from finished edge to finished edge and from floor to ceiling or to the planned tile height. If you are tiling a backsplash, measure the full run above the countertop and include exposed ends, because those side pieces often need tile even when the cabinet run looks continuous from a distance. For a shower, measure each wall face on its own rather than trying to average the whole enclosure into one number.
Large openings can be subtracted if they truly remove tile coverage, but I do not get aggressive with this. A standard doorway, a small window, or a cluster of outlets usually does not reduce the order enough to matter, because the cuts and breakage from those details eat the savings right back up. This is where a simple table helps keep the method straight.
| Surface | How I measure it | What to watch for |
|---|---|---|
| Floor | Length x width, split into rectangles if needed | Closets, recesses, and out-of-square walls |
| Wall | Width x height for each wall face | Cabinets, windows, and fixed trim lines |
| Shower | Measure each wall, curb, niche, and bench separately | Waterproofing transitions and lots of cut pieces |
| Backsplash | Count the full run above the counter and any ends | Outlets, switches, and termination pieces |
Once the area is accurate, the next decision is less about geometry and more about layout, because layout is what drives waste.
Add waste based on layout, not optimism
This is the part many DIY projects get wrong. The amount of extra tile you need is not just a cushion for mistakes. It also covers cuts, breakage, factory shade variation, pattern matching, and the pieces you lose when a wall is not perfectly square. For a straightforward floor, I usually start with 10% extra. That is the same basic margin most store calculators and pro estimating guides still use for standard work.
| Layout type | Waste allowance I would plan | Why it changes |
|---|---|---|
| Straight lay or simple grid | 10% | Few cuts, easy matching, lower breakage risk |
| Diagonal layout | 12% to 15% | More triangular cuts and more offcut loss |
| Herringbone or basketweave | 15% to 20% | Pattern waste rises fast, especially at edges |
| Rooms with many corners, niches, or curves | 15% to 20%+ | Layout trimming and test cuts add up quickly |
There is a simple rule behind those percentages: the more the tile has to be cut, rotated, or matched, the more extra material I order. I am also more conservative with larger-format tile, because a bad cut on a 24 x 48 tile costs more than a bad cut on a small mosaic sheet. If the tile has strong veining or a lot of shade movement, I lean upward again so I have enough pieces to blend the visual pattern instead of forcing a patchy layout.
That leads directly to the spaces that create the most expensive surprises, because showers, backsplashes, and other broken-up surfaces rarely behave like a plain rectangular floor.
Measure special areas one face at a time
For a shower, I measure the back wall, each side wall, the curb, any bench, and every niche as separate surfaces. A shower niche looks tiny on paper, but it creates enough short cuts and edge pieces that it deserves its own line in the takeoff. I also plan extra material for bullnose, trim profiles, or any finishing edge that will be visible once the tile is in place.
Backsplashes are simpler, but they still need discipline. I measure from the countertop to the bottom of the upper cabinet, then add the exposed ends and any short return walls. I do not reduce the order much for outlets and switches, because the tile around them still has to be cut, and those cuts are exactly where waste happens. Fireplace surrounds, laundry rooms, and accent walls follow the same logic: measure the actual face, then measure the interruptions separately.
For awkward shapes, I prefer to break the surface into smaller rectangles or squares instead of trying to estimate the full outline in my head. That habit is slower by a few minutes and safer by a lot. Once the special areas are counted correctly, the last job is translating square footage into boxes and accessory materials.
Turn the square footage into a buying list
Tile is usually sold by the box, so the number that matters most is not just square feet, but coverage per box. If your total comes to 87.8 square feet and you add 10% waste, your purchase target becomes about 96.6 square feet. If each box covers 12.5 square feet, you need 8 boxes, not 7. That extra box looks expensive when you are standing in the aisle, but it is usually cheaper than running short after you have opened the adhesive.
I also build the rest of the shopping list at the same time. Trim pieces are measured in linear feet, not square feet, and grout is estimated from the tile size, joint width, and total surface area. Thinset is similar: a 12 x 24 floor tile consumes different coverage than a small wall tile because the trowel notch and back-buttering change the math. If the product label includes a coverage chart, I trust that chart more than a guess.
- Tile: order by box coverage, then round up.
- Trim and bullnose: measure exposed edges in linear feet.
- Grout: estimate from the manufacturer’s coverage chart.
- Thinset: match the trowel size to the tile format and substrate.
The reason I put accessories on the same list is practical: a tile job slows down fast when you have the tile but not the finishing materials. The biggest delays usually come from overlooked details, so the next section is about the errors I see most often.
Avoid the mistakes that force a second tile run
The most common mistake is measuring only once. The second is measuring the room as if it were a perfect rectangle when the actual space has a bump-out, sloped ceiling, or an opening that changes the cut pattern. The third is being too optimistic about waste, especially with diagonal layouts or herringbone patterns that eat material at the edges.
- Measuring one wall and assuming the opposite wall is identical.
- Subtracting every outlet, nook, and small cutout as if they were full square feet.
- Forgetting that pattern direction changes waste.
- Buying tile before checking the box coverage and lot number.
- Rounding down to “save money,” then paying for a second shipment later.
- Ignoring hidden surfaces like shower curbs, niche walls, or backsplash returns.
I also watch for a detail many homeowners miss: tile from a different production lot can look slightly different, even when the product name is the same. That is one more reason I would rather have a small surplus from the original order than a shortage that forces a color match later. Once you avoid those mistakes, the final step is less about math and more about making the project easy to finish.
The order I would place before I start setting tile
When I am planning a real job, I want three things before installation day: the measured square footage, the waste-adjusted order quantity, and the accessory list. I would rather spend ten extra minutes on the takeoff than stop mid-project because the last row of tile or the final edge trim is missing. For most straightforward rooms, that means ordering enough tile for the space plus about 10%, then moving upward when the pattern, shape, or cuts become more demanding.
I also like to keep one unopened box if the budget allows. That reserve is useful if a piece cracks during installation, but it also becomes a future repair kit if a single tile gets damaged later. Store the box label and lot number with the leftover material so you can match it later without guessing. That small habit saves a lot of frustration in kitchens, bathrooms, and entryways where damage always seems to happen when the original line is no longer available.
If you measure carefully, break the project into separate surfaces, and plan waste honestly, tile buying becomes straightforward instead of stressful. That is the version of the job I trust: clear numbers, a little buffer, and enough material to finish cleanly the first time.
