When I size a roof ventilation system, I start with net free area, not the visible frame, because the real issue behind roof vent sizes is the airflow rating behind it. This guide breaks down the dimensions that matter, how to calculate the amount of ventilation an attic actually needs, and why intake at the eaves usually determines whether the system works. It also covers the cases where gutters, fascia, or a missing soffit force a different intake detail.
The key numbers to get right before you buy a vent
- Net free area is the number that matters most; the outer footprint is only part of the story.
- The IRC uses 1/150 of the vented area as the baseline, with a 1/300 exception in balanced, code-eligible assemblies.
- Ridge vents are often sized by linear foot, while box vents are sized by their NFA per unit.
- Continuous soffit and drip-edge intakes commonly deliver 9 sq. in. of NFA per linear foot.
- Static roof vents can look large but still move less air than a long ridge system.
- If the eave has no soffit space, a vented drip edge can solve the intake problem without disturbing water control.
What vent dimensions actually tell you
I separate three things every time I look at a vent: the outside size, the opening cut into the roof, and the net free area. The first helps the vent fit the roof. The second tells me how much roof deck has to be opened. The third tells me how much air actually gets through after screens, louvers, baffles, and internal shape do their work.
That distinction matters because a vent can look generous and still move less air than you expect. A 12 by 12 roof vent is not a blank 144-square-inch hole, and a ridge vent that looks slim can still outperform several box vents if the continuous run is long enough. I usually trust the listed NFA long before I trust the footprint.
For ridge systems, I also check the air slot under the cap. GAF’s current ridge-vent specs, for example, call for a slot between 1-3/4 inches and 3-1/4 inches depending on the product, and one common model delivers 18 square inches of NFA per linear foot. That is the kind of detail that turns a pretty roof detail into a working ventilation system.
Once that difference is clear, the rest of the sizing problem becomes much easier to read.
Common vent dimensions by type

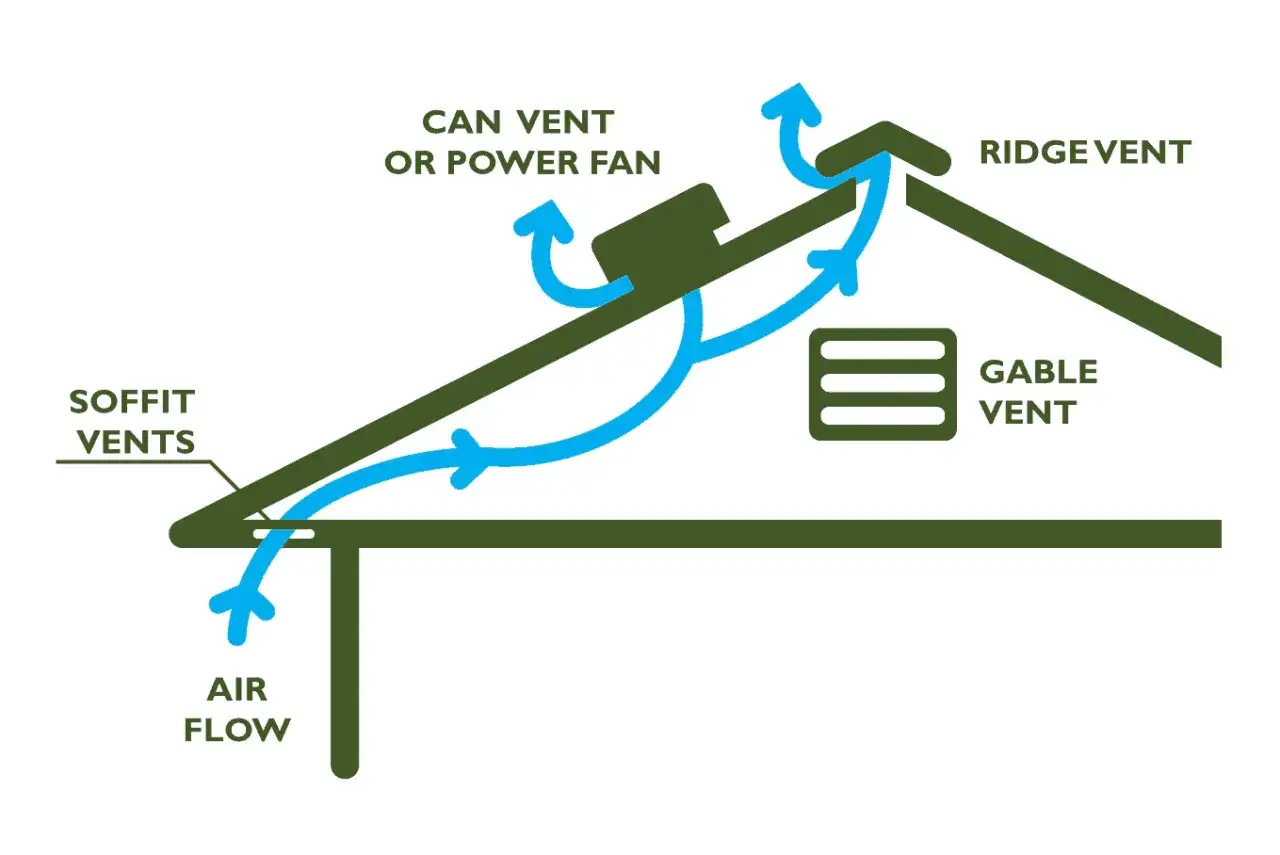

When people talk about vent sizes, they usually mean one of four things: ridge vents, soffit or edge intakes, static roof vents, or round and mechanical vents. The tricky part is that each type measures differently, so a fair comparison only works when you look at the NFA and the installation length, not just the shape.
| Vent type | Common dimensions | Typical spec to check | Why it matters |
|---|---|---|---|
| Ridge vent | 9-inch or 11.5-inch widths, often sold in 4-foot sticks or longer rolls | About 12.5 to 18 sq. in. of NFA per linear foot, plus pitch compatibility | Best for long, continuous exhaust runs on standard shingle roofs |
| Continuous soffit or edge intake | 8-foot soffit sections, 4-foot drip-edge pieces, or similar linear products | Often 9 sq. in. of NFA per linear foot | Useful intake on homes with or without overhangs |
| Static roof vent or box vent | Common catalog footprints include 8 by 8, 12 by 12, 12 by 18, and 14 by 24 | Typical NFAs can land around 17.6, 39.6, 59.4, and 92.4 sq. in. respectively | Easy to retrofit, but many units may be needed to reach the target |
| Round or circular vent | 4-inch, 6-inch, and 7-inch circular styles appear in some catalogs | NFA varies widely by model | Diameter alone does not tell you much about airflow |
| Turbine or powered vent | Diameter or hood size changes by model | Look for CFM or NFA, not just the cap size | Performance depends on the device, not the visible shell |
The lesson here is simple: two vents with the same footprint can move very different amounts of air. That is why I treat product labels as performance data first and physical dimensions second.
These numbers become much more useful once they are matched to the attic area they have to serve.
How to size the system for an attic
According to the IRC, the baseline minimum is 1/150 of the area of the vented space, with a 1/300 exception in code-eligible balanced assemblies. The math is straightforward: take the attic floor area in square feet, divide by 300 or 150 as required, and then convert the result to square inches by multiplying by 144 if you are matching product labels.
| Attic area | Code path | Total NFVA | Intake and exhaust split |
|---|---|---|---|
| 1,200 sq. ft. | 1/300 balanced | 4.0 sq. ft. = 576 sq. in. | 288 sq. in. intake and 288 sq. in. exhaust |
| 1,200 sq. ft. | 1/150 | 8.0 sq. ft. = 1,152 sq. in. | 576 sq. in. intake and 576 sq. in. exhaust |
That example shows why NFA matters so much. If I need 288 square inches of exhaust, a ridge vent running at 18 square inches per linear foot needs about 16 feet of coverage. If my intake is a continuous soffit product rated at 9 square inches per linear foot, I need about 32 feet of intake to keep up. The same 288 square inches would take roughly eight 12 by 12 static vents at 39.6 square inches each, which is why box-vent layouts can get crowded fast.
Once the attic math is clear, the next question is whether the intake side can actually deliver that much air.

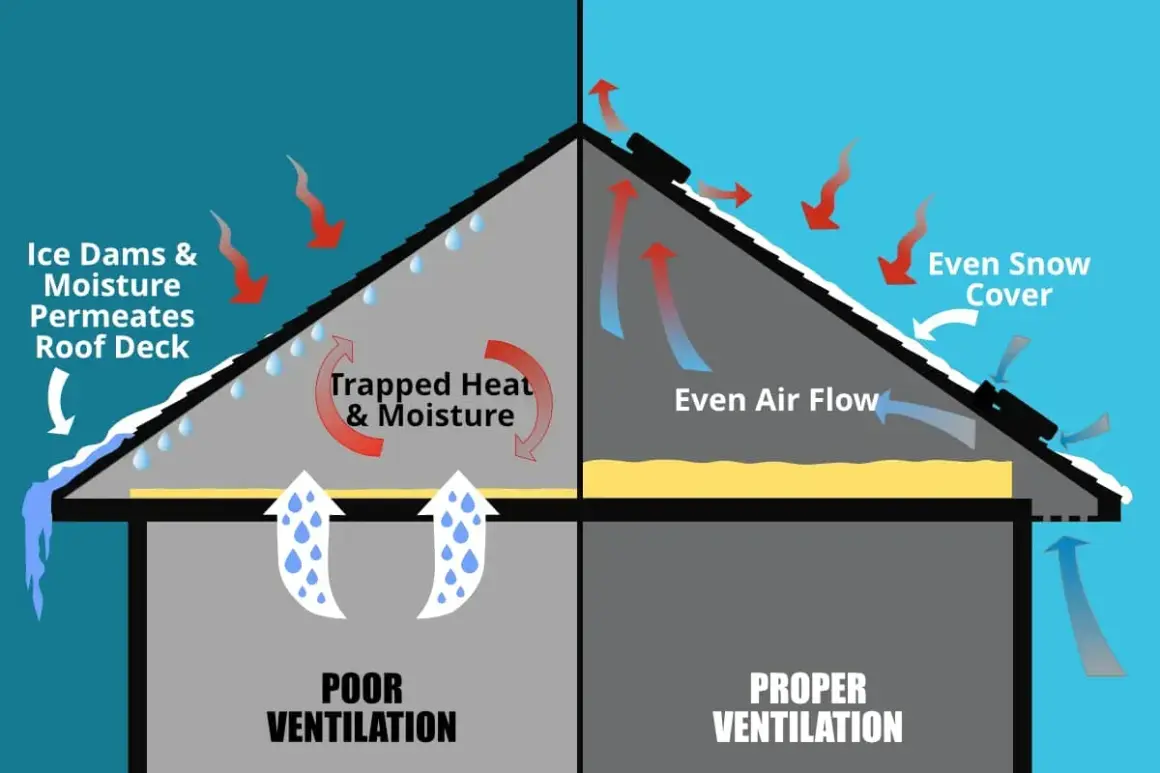

Why intake usually sets the real limit
In the field, I almost always find the intake side starved first. Insulation drifts into soffit openings, old screens clog with paint and debris, and short eaves simply do not leave much room for a conventional vent panel. A roof can have plenty of exhaust hardware and still perform poorly if the low side cannot feed it.
I design for balance, not for a heroic-looking exhaust line. If the ridge can move more air than the soffit can supply, the attic system becomes lopsided. GAF is explicit about that principle on ridge systems, and I agree with it: exhaust should not outrun intake.
The rule of thumb is practical. If your ridge vent provides 18 square inches of NFA per linear foot and your intake vent provides 9 square inches per linear foot, the intake side needs about twice the linear footage to stay in balance. That is why I treat the soffit or eave detail as the governing dimension, not an afterthought.
- Clear or replace blocked soffit openings before adding more exhaust.
- Use attic baffles so insulation does not choke each rafter bay.
- Match intake and exhaust by NFA, not by the number of visible vents.
- Avoid mixing unrelated exhaust styles on the same attic unless the system is designed for it.
When the air path is balanced, the roof edge itself becomes the next design decision.
When gutters and low eaves change the intake plan
A roof with no overhang, a narrow fascia, or a crowded gutter detail can make standard soffit vents hard to use. That is where a vented drip edge or edge vent earns its place. It puts intake at the roof edge instead of asking the eave to do a job it was never built to do.
Current edge and drip-edge intake products are commonly rated at 9 square inches of NFA per linear foot, and they often come in 4-foot or 10-foot lengths. That makes them easy to lay into a reroof without sacrificing drainage. I like this option when the gutter line already needs precise flashing, because it keeps water control and air intake in the same clean detail.
If the roof geometry really does not allow soffit intake, low gable or eyebrow vents can work in some assemblies, but I treat them as design-specific exceptions. They are not my first choice when a continuous low intake is possible, because a ridge system works best when the air enters low and exits high along the underside of the deck.
The final step is checking the product details that can quietly change the real airflow you get on site.
The checks I would make before I trust the label
- NFA per piece or per linear foot, not just the outside footprint.
- Roof pitch range the product is approved for.
- Air-slot size under ridge vents and the required ridge-cap compatibility.
- Screen or filter design, because pest protection can reduce airflow a little.
- Material choice for corrosion resistance in coastal or wet climates.
- Code and manufacturer instructions if the home is in a snow, wind, or wildfire-prone area.
- Clear intake path in every rafter bay, especially where insulation tends to wander.
Whenever I review a roof that seems over-vented or under-vented, the fix is usually not a bigger product. It is a better match between attic area, vent NFA, and the path air actually takes from the eave to the ridge. If those three things line up, the exact brand or profile matters a lot less than most shoppers think.
